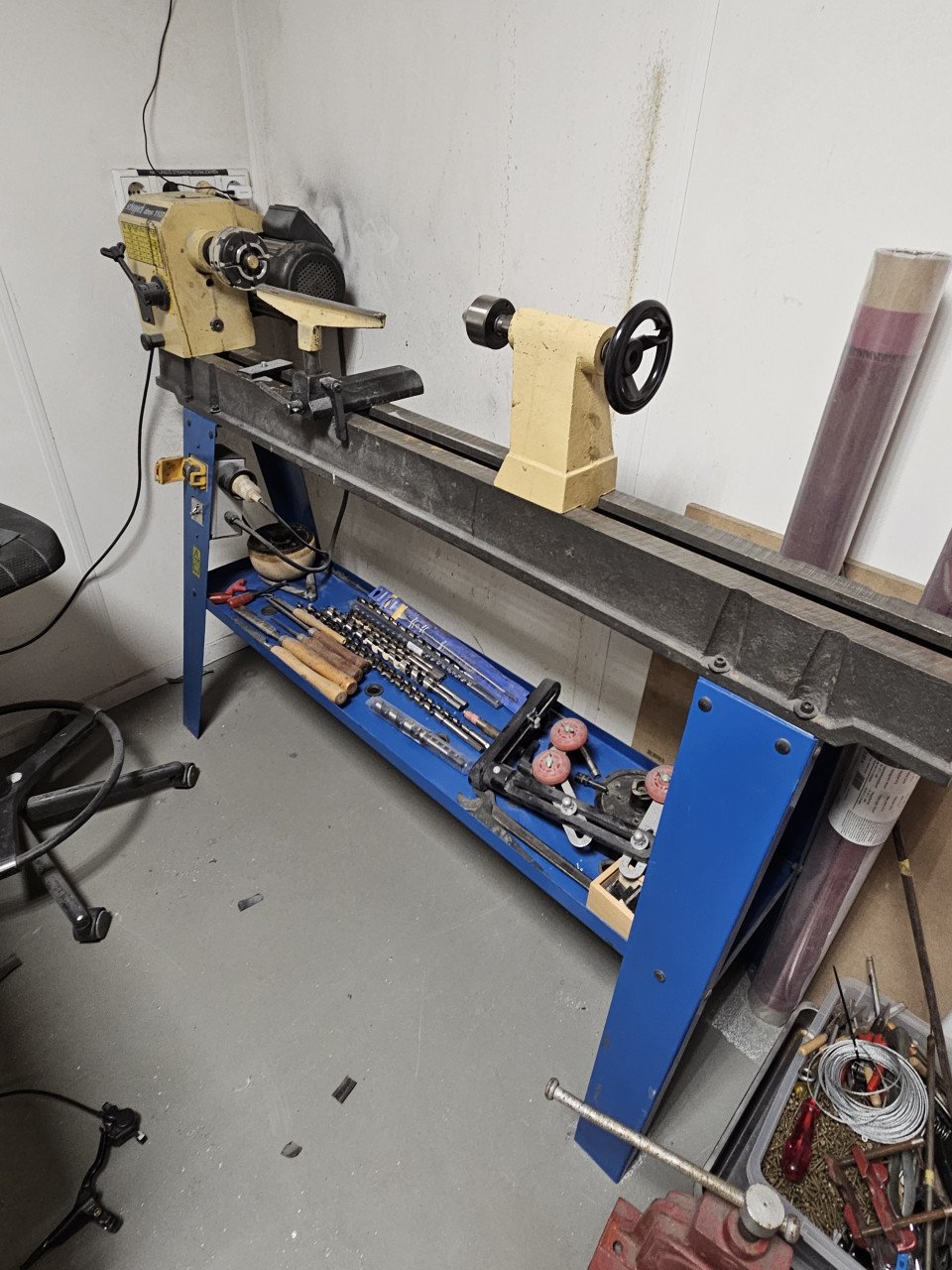

Scheppach dms 1100 houtdraaibank

Beschrijving

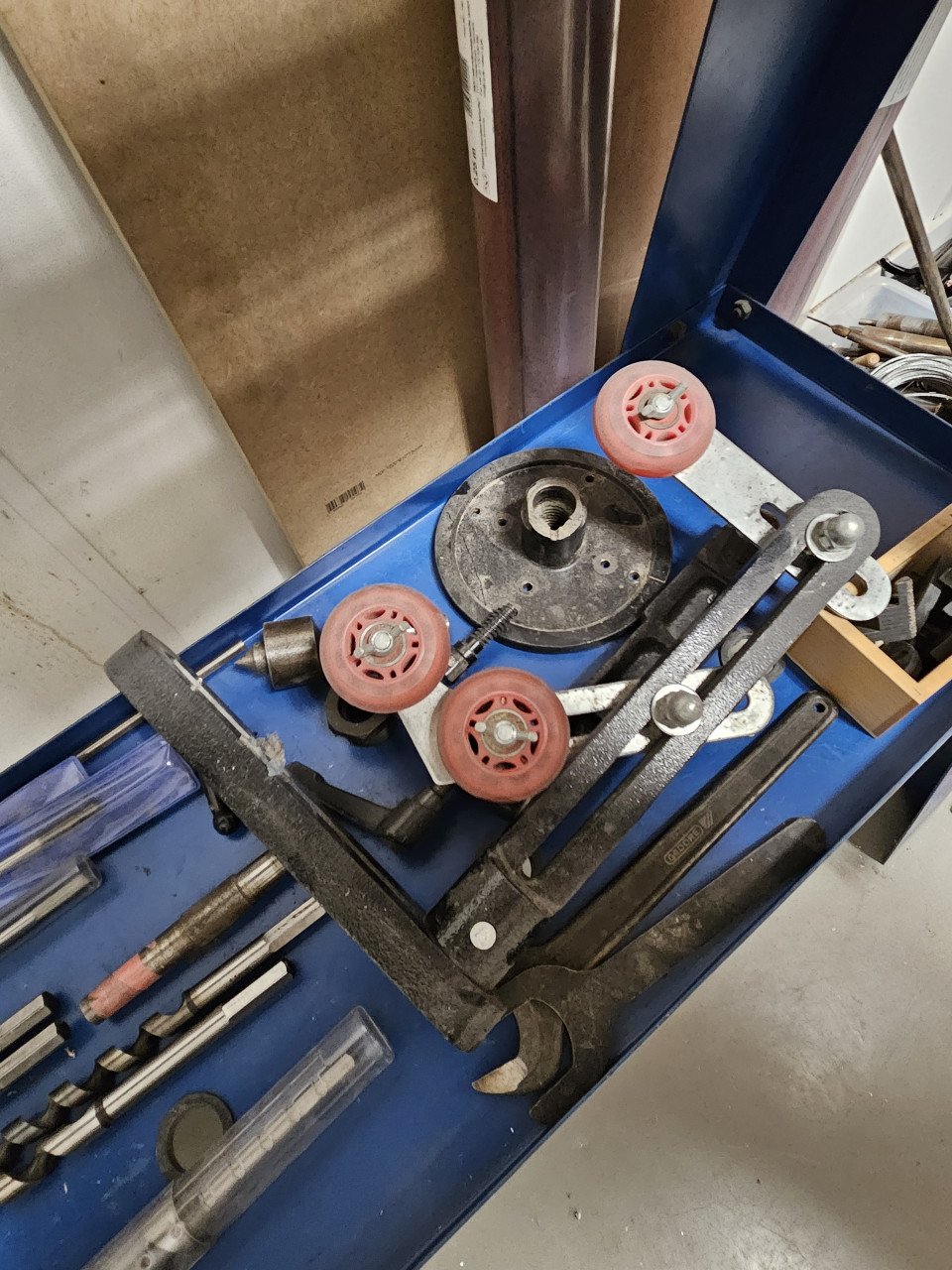

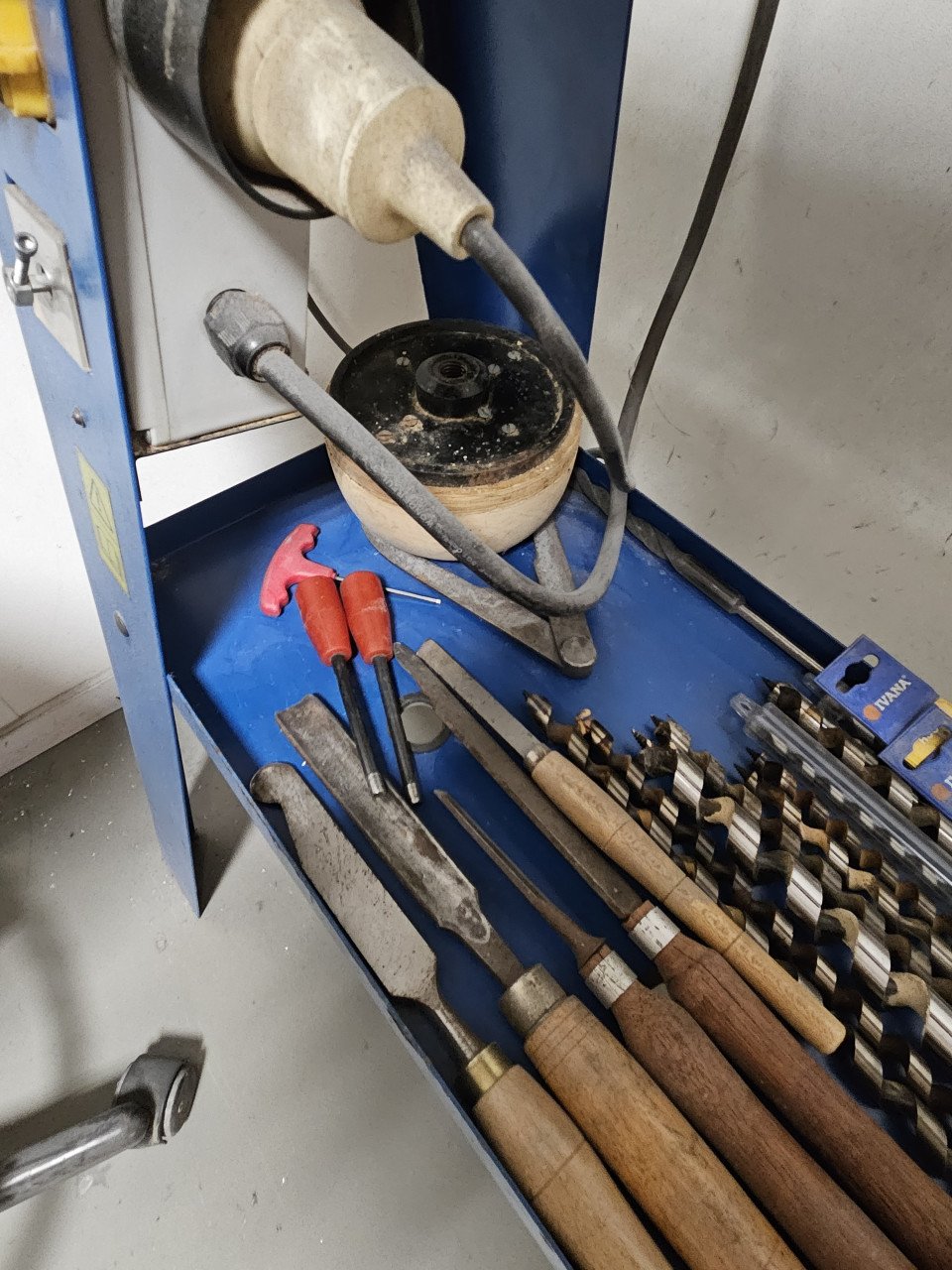

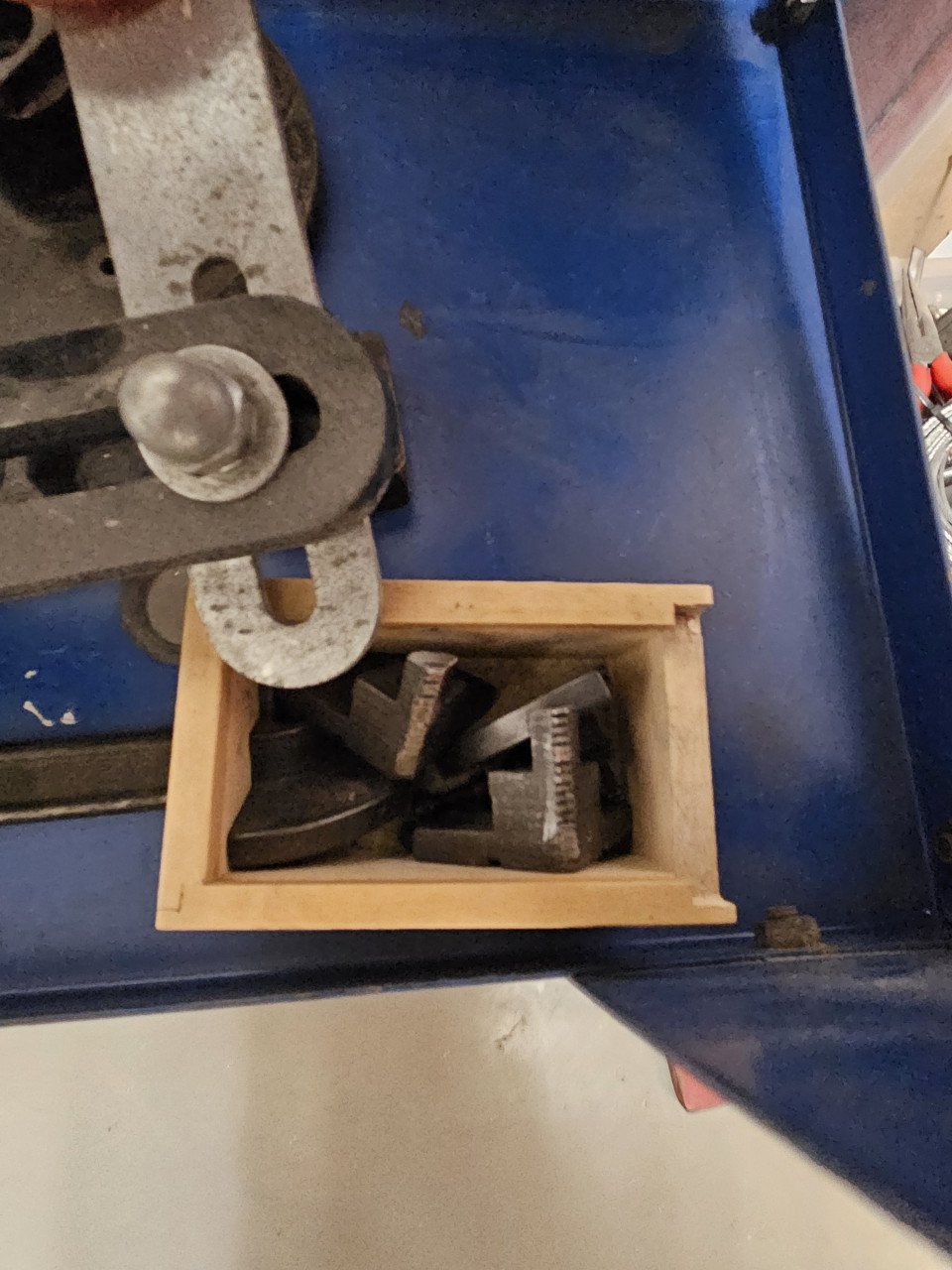

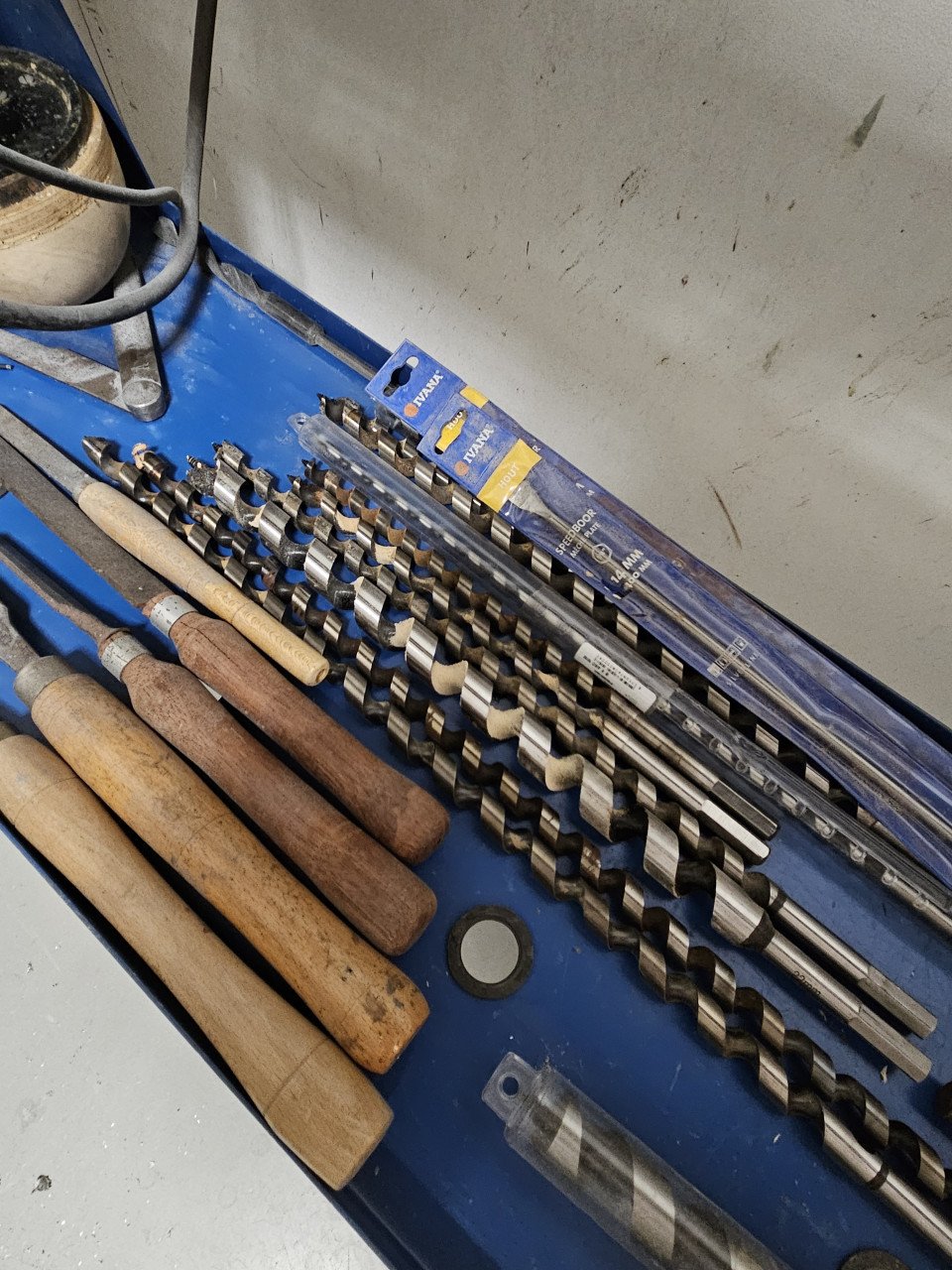

Goedwerkende Scheppach houtdraaibank met extra spiraal boren, beitels, bril en klauwen etc.

Info van wgm-machinen.de:

Woodturning lathe dms 1100

Aimed at the professional or serious enthusiast, the woodturning lathe dms 1100 with standard base.

Although in many ways similar to our dms 900 this lathe with its much heavier construction and larger 1 HP induction motor will appeal to the professional or committed turner who is looking for that higher specification in a more powerfulmachine. Distinguished also by its impressive specification, the dms 1100 weighs in at 92 kg and offers 1,050 mm between centres and 355 mm turn­ing diameter over the bed. For those large turning projects it has the advantage of a swiveling headstock. Ten spindle speeds and the advanatges of both clockwise and anti-clockwise spindle rotation, the scheppach dms 1100 offers a heavy duty lathe at light duty cost.

Technical data

L/W/H mm: 1,610/490/1,175

Bed height mm: 910

Distance between centres mm: 1,050

Height of centres  over bed mm:  175

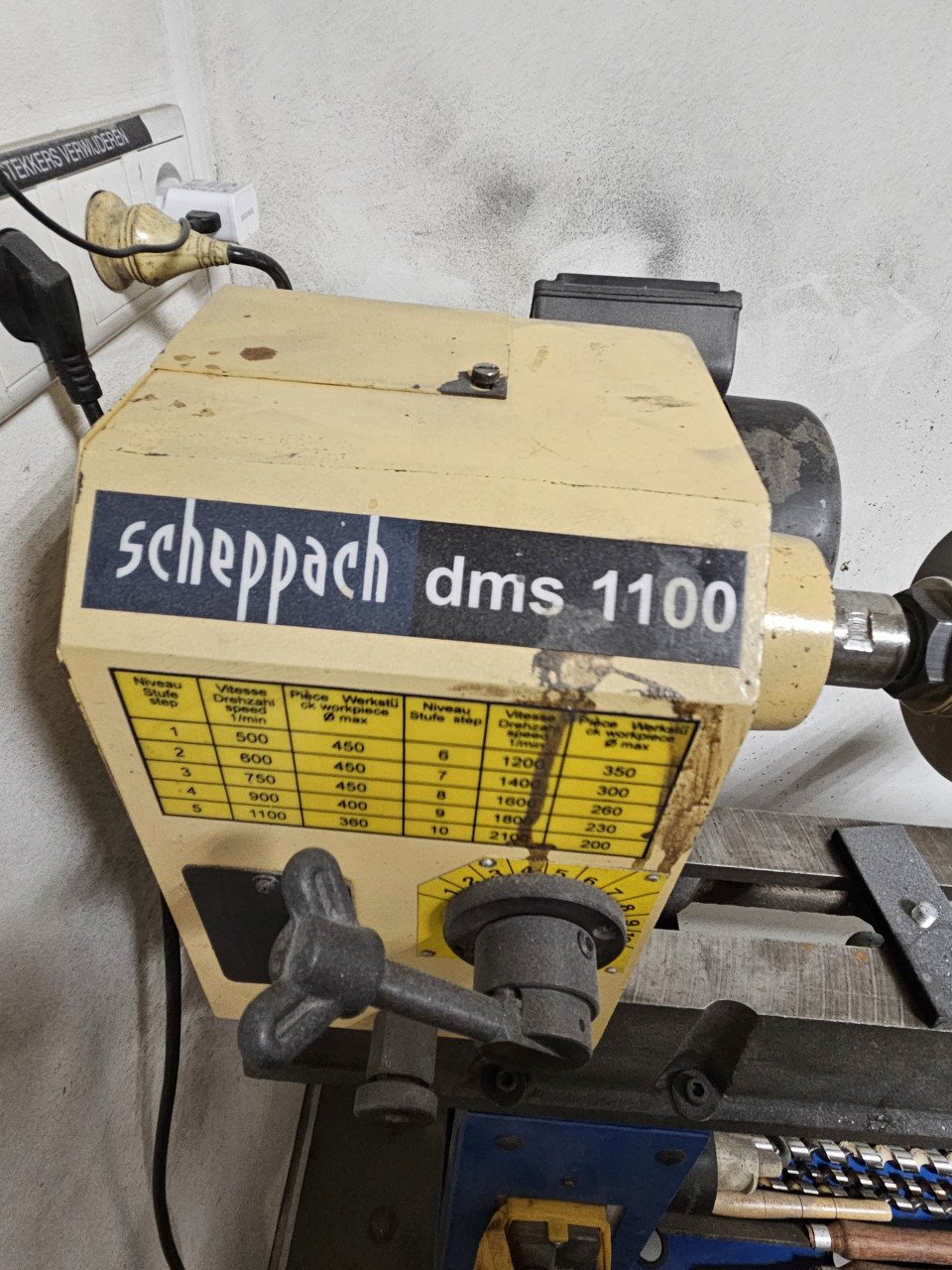

Spindle speeds rpm

500/600/750/900/1,000/
1,200/1,400/1,600/1,800/
2,100

Turning Ø over bed mm: 355

Tool rest length mm: 300

Face plate Ø mm: 150

Weight approx. kg: 92

Motor
230-240V/50 Hz

Input kW (HP): 0.75 (1.0)

Output kW (HP): 0.5 (0.68)

Rpm: 1,400
