GENERATOREN

Beschrijving

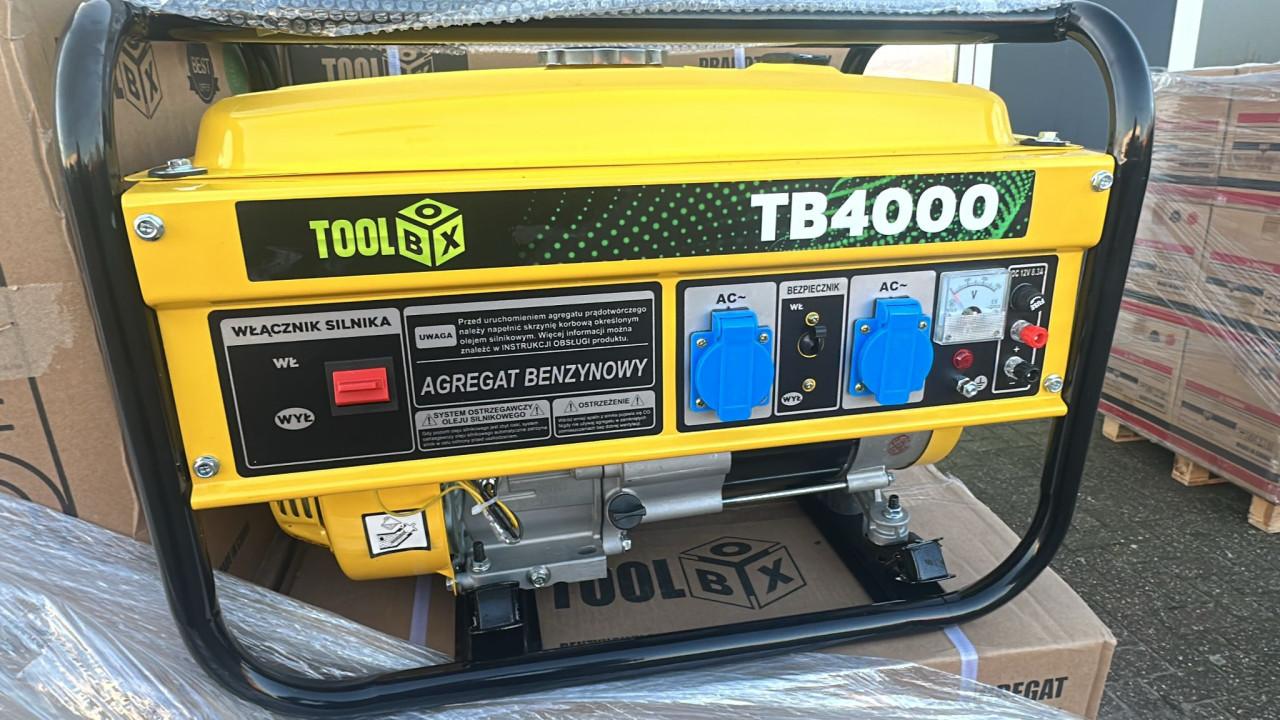

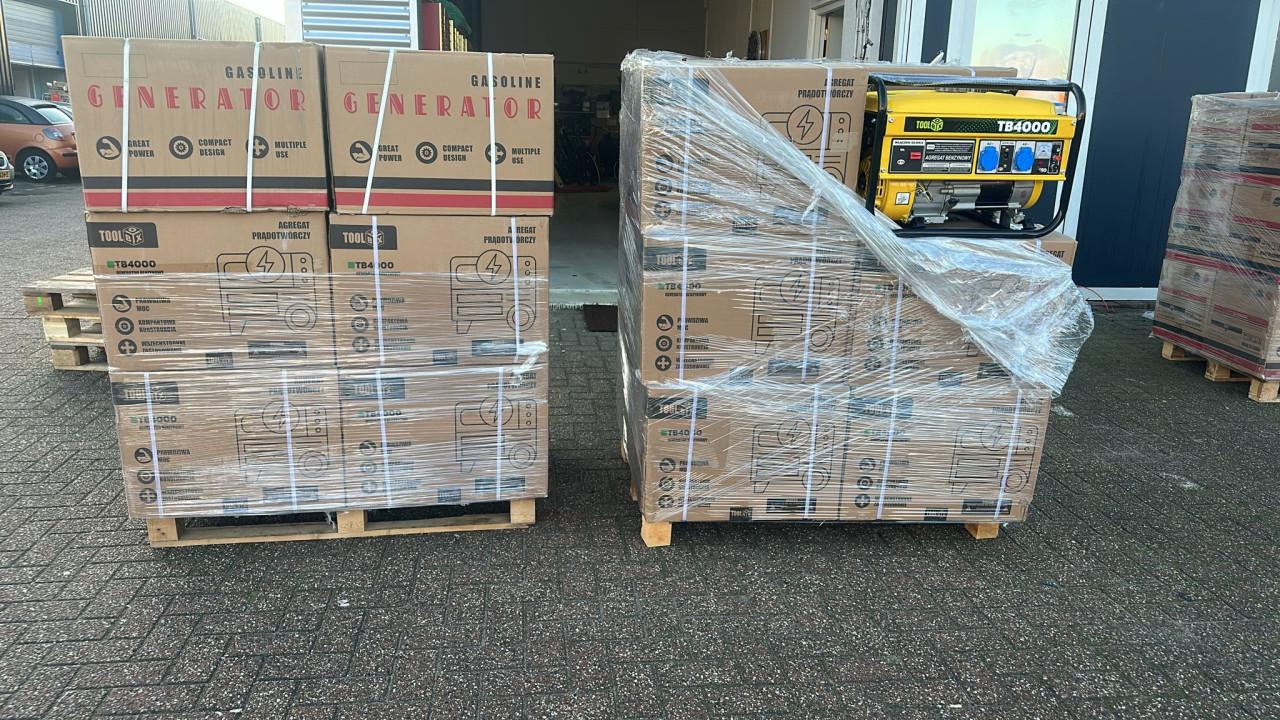

Gasoline generator for electricity production Toolbox TB4000, inverter generator, generator for home, recreation, farm, 1 phase.
100% copper windings
Engine type single cylinder, 4-stroke (OHV), air-cooled
Output power 7 HP
Engine displacement 212cc
Speed 3000r/min
Oil volume 0.6l
10L fuel tank capacity
Fuel consumption: min 0.8l/h; max 1.5l/h
Maximum output power 3.0 KW
Nominal power 2.8 KW
Voltage AC 220V
Voltage DC 12V
AVR voltage stabilizer
Frequency 50Hz
Oil level warning system
Fuel gauge
Manual start
Dimensions 605x440x440mm Weight 36 kg
AVR voltage stabilizer:
Its main task is to stabilize the output voltage.
AVR reduces current fluctuations, allowing safe use of electrical appliances.
AVR significantly reduces the risk of damage to delicate electronics.
High-class AVR allows you to smooth the sine wave to a level of 1% to 5%, the standard for the electrical network is from 5% to 10%, which significantly increases the safety of the devices.
Weight 37 kg
Dimensions 60 × 45 × 45 cm
Performance 2 – 4KW
Voltage 1-phase (220V)
Fuel type Gasoline
Brand Toolbox

Model

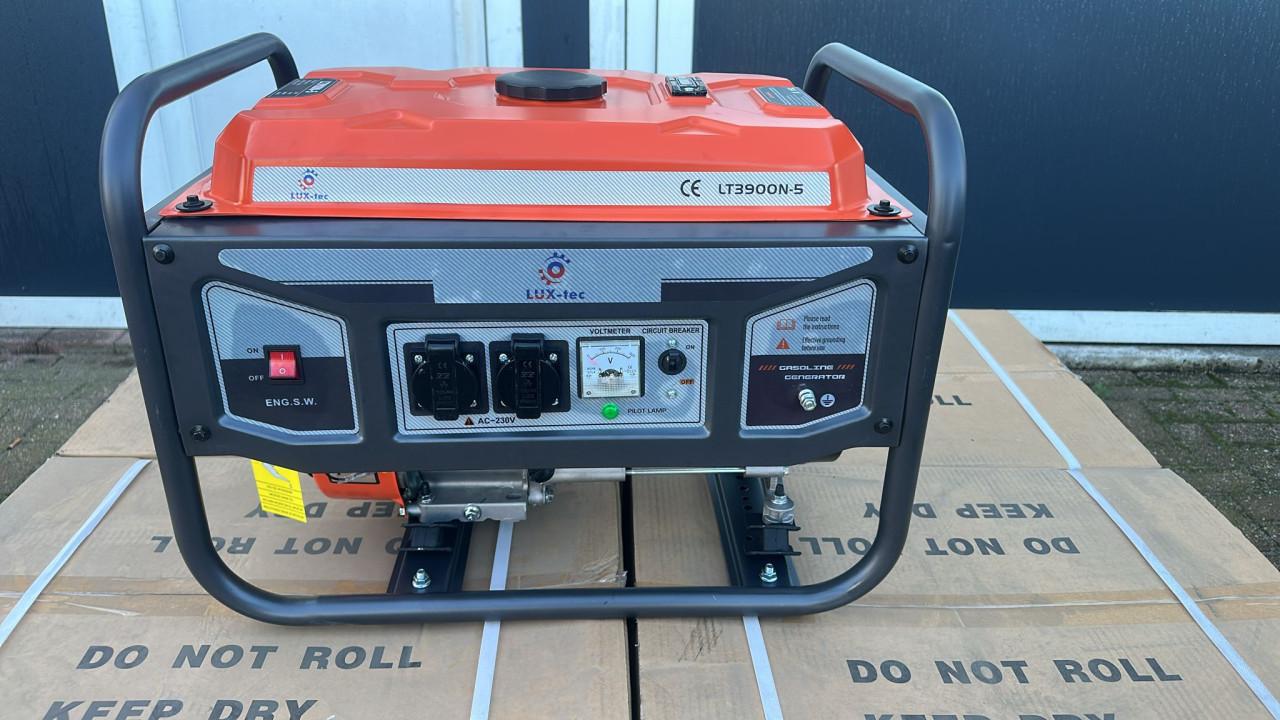

LT3900
Engine Model
LT 3900 N5
Engine Output
7.0HP
Bore x stroke
70 x 56mm
Displacement
210cc
Compression ratio
8.5
Rated rotation speed
3000 / 3600rpm
Oil capacity
3.6L
Rated frequency
50 / 60hz
Rated voltage
220 / 380v
Rated output power
2.8kw
Max output power
3.0kw
Alternator
Aluminum / Copper
